Bluewatt Ducted Split Air Conditioner – Model BDS-24I1PAU – 24,000 BTU
- 2026 series
- Includes a wall-mounted controller
- Heating capability via hot water coil and heat pump
- Up to 3-year warranty
- Inverter technology
- Indoor and outdoor units are connected using copper refrigerant piping
Models
| BDS-24I1PAU | |
| Nominal Capacity (Btu/h) | 24000 |
| Actual Cooling Capacity (kW) | 7.03 |
| Actual Heating Capacity (kW) | 7.88 |
| EER | 3.11 |
| COP | 3.41 |
| Power Supply | 1 Phz 220-240V |
| Maximum Noise Level | 42/44/46 |
| External Static Pressure (Standard/Maximum) | 80 |
| Liquid Pipe Size | 3/8Φ |
| Gas Pipe Size | 5/8Φ |
| Dimensions (H×W×D) | 200×900×700 |
| Weight | 32 |
| Refrigerant | R410A |
| Maximum Piping Length | 50 |
| Maximum Vertical Separation | 15 |

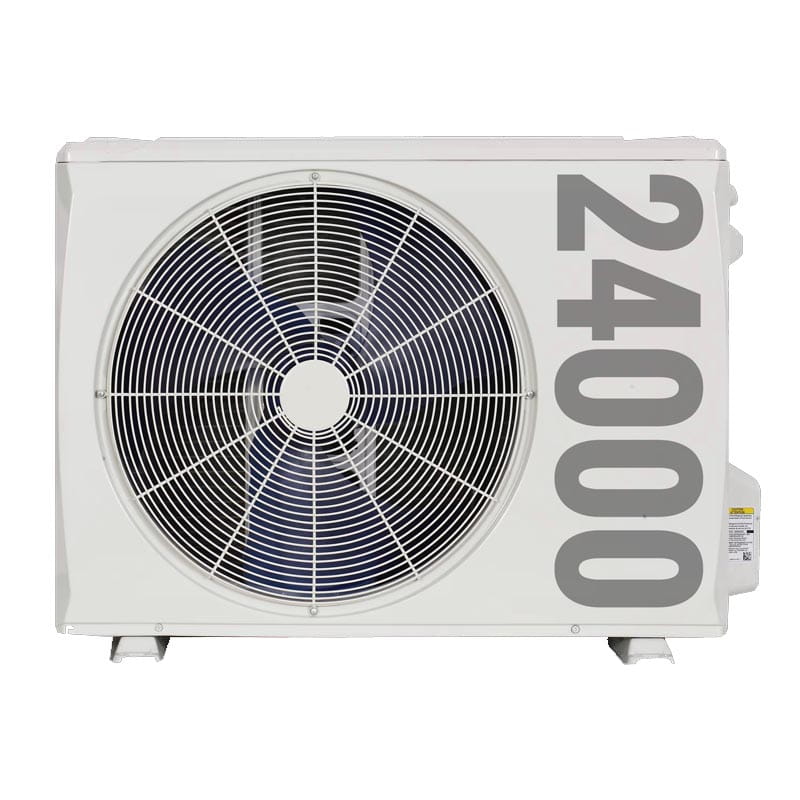

| BDS-24I1PAU (O) | |
| Air Flow Rate (m³/h) | 3750 |
| Compressor Type | Inverter Rotary |
| Dimensions (H×W×D) | 825×655×310 |
| Weight | 42 |
